Showing all 51 results
Actophotometer, state type with six photo cells for measuring spontaneous or induced activity with digital totalizer or counter

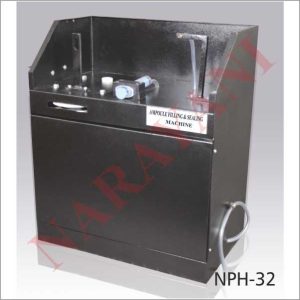

AMPOULE FILLING AND SEALING DEVICE
Simple, syringe type, hand driven gives ten ampules per minute, capacity of filling adjustable from 1ml. to 10 ml by cam lever arrangements. Automatic intake outflow of fluid. All contract parts are of Borosilicate glass. The sealing apparatus consists of glass fusing burner for LPG or Petroleum gas with foot Bellow & Rubber tubing.

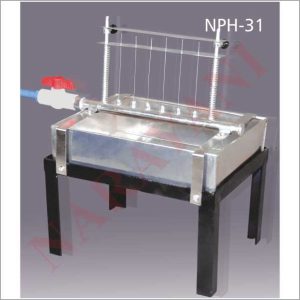

AMPOULE WASHING DEVICE
Jet needle type, consists of six Stainless Steel needle jets fixed on a chromeplated brass pipe of 12.5 mm dia with side tap and serrations for fixing rubber with tap water. Spring loaded ampoule holding arrangement for various sizes of ampoule. With stainless steel bottom tray on stand.
Available in the following models :

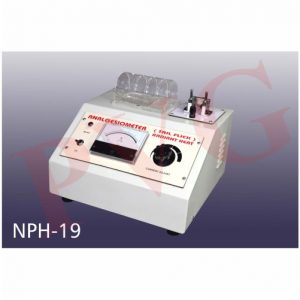

(I) Mark 1 (Radiant Heat or Tail Flick Type): it provides plain stimulus by heated nichrome wire in a rat’s tail to determine analgesic effects of drugs. Complete with one spare element to Work on 220 A.C.
(ii) Mark 2 (Contact Heat Type) with temperature indicating Galvanometer provides plain stimulus in Rat’s tail by heated nichrome strip and temperature probe,works on 220V A.C.
Accessories : Nichrome heater strip and temperature probe available at extra cost
(iii) Mark 3: Eddy’s Hot plate consisting of 30 x 30 cm. heating surface with perspex enclosure and solid state temperature controller with indicating Galvanometer to set surface temperature between 30° to 80°C.
(iv) Same as above, but with Digital temperature controller.

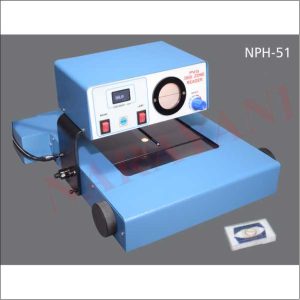

ANTIBIOTIC ZONE READER
Provides a rapid accurate method for determining the strength of antibiotic materials by measuring the diameter of an inhibited zone in petri dish.
• Measures the diameter of the inhibited zone to 0.02 mm with the range of 0 to 35 mm.
• Work on 230 volts A.C. 50 C/S
Acrylic sheet front and side door, fully visible transparent, 3′ germicidial ultraviolet tube and 2′ flourescent tube for white light with necessary cock blast, starter and switches fitted. With mains lead and plug . Provided with two holes with rings and sieves for insertion of arms
Dimensions 95 x 50 x 50 cm with sloping front..
- Same as above but fitted with small tube.

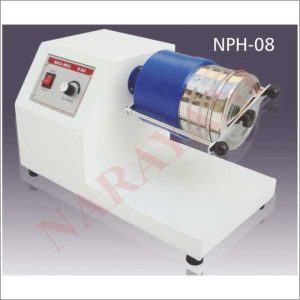

BALL MILL, MOTOR DRIVEN
(I) A compact unit built on metal platform, with geared motor which revolves a drum and contains a stainless steel (capacity 1 kg.) The drum rotates on the metal brackets. Complete with set of balls means lead and plug provided (5 Amp) Work on 220 volts A.C. Capacity 1kg.
(ii) Same as above, but Stainless steel Drum of capacity 2Kg.
(iii) Same as above, but Aluminum Drum of capacity 1Kg.
(iv) Same as above, but Aluminum Drum of capacity 2Kg.

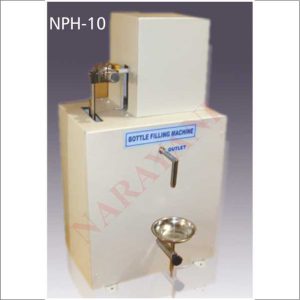

BOTTLE FILLING MACHINE MOTORIZED
- Easy to use
- Optimum Performance
- Smooth Working
- Electrical operated
Widely used in various industries such as food, beverage, chemical, etc. Precisely manufactured using quality assured components and advanced technology. Works on 220 V 50 Hz A.C Mains.

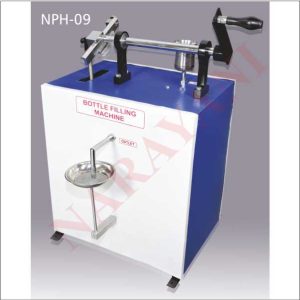

BOTTLE FILLING MACHINE HAND OPERATED
Bottle filling machine: semi automatic electric operated having filling cap. 50 to 300 ml. complete stainless steel body.
(I) With single syringe.
(ii) With Double syringe.

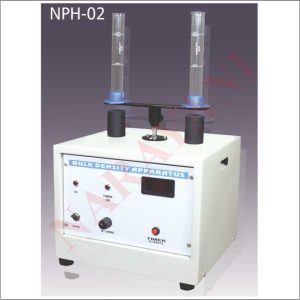

BULK DENSITY APPARATUS
Electrically operated, Elegant design for smooth operation . To study the packing down of powder beds of different pharmaceuticals and Chemicals in the process of tablet manufacturing, capsule filling & cosmetics, Installed with an automatic device for preset of strokes. Gear driven noiseless and sturdy motor, also provided with an Electronic timer, works on 220-230 V AC, 50 Hz.

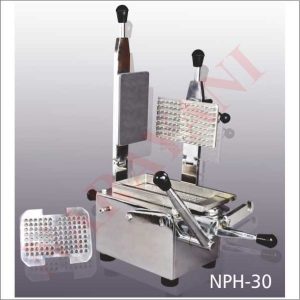

CAPSULE FILLING MACHINE
A versatile, lever operated semi automatic machine for various operations with levers in order of Plates for putting of capsule by hand . Removal of capsules Filling of powder by dispensing of brush pressing Fixing of capsules and sealing Injection of capsule. Contact parts of stainless steel for 100 capsule of size 0 to 2 or 5.

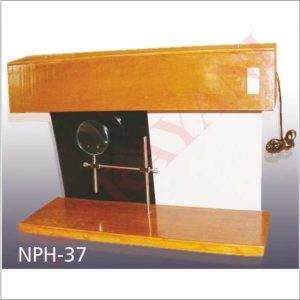

CLEARITY TEST EQUIPMENT FOR AMPOULES
Ampule Clarity Test Equipment Clarity Test Equipment For Ampoules milky white and black screen fitted on abase board with diffused light arrangement overall dimensions are 23″ x 15″ x 18 high. A stainless upright adjustable slide arm with clamp magnifier ,main cord and plug. Size: – 23″ x 15″ x 18″
With lid and drain cock, stainless steel sieve on steel stand having three legs. Capacity 1000 ml.

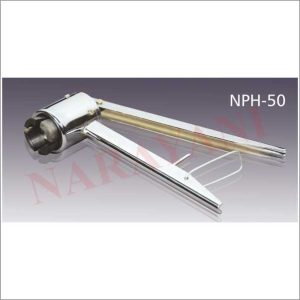

CRIMPING MACHINE MANUAL
Stainless steel, Use to crimp 20 mm. Aluminium – plastic crimp cap on 20 mm. Opening mouth glass Vials/ bottles.

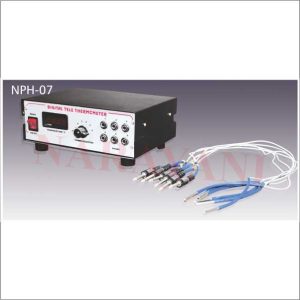

DIGITAL TELE THERMOMETER
An Extremely useful instrument for pyrogen Testing In any Pharmaceutical industry. Provided with 6 Channel facility so that temperature for 6 animals can be checked at a time . Provision Has been made at the back of instrument for temperature calibration if considered necessary.
Range : 0 to 60°C
Resolution : 0.1°C
Accuracy : ± 0.2% F.S ± 1 Digit
Input : RTD (PT-100) or IC Sensor
Channels : Channels Switch Selectable
Display : 31/2 digit red LED display
Power : 220V ± 10% AC 50 HZ
Dimension : 275 x 175 x 75 mm.
Mass : 2 Kgs
Accessories : 6 Pyrogen Probes, Dust Cover, Instruction Manual

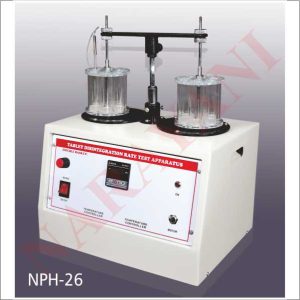

DISINTEGRATION TEST APPARATUS (DOUBLE BASKET)
Work on up and down movement of tablet in medium of water kept at 37° C.A geared motor for the vertical shaft drive the shaft moves up and down by 7.5 cm at a speed of 30 per minute. On the upper end of the shaft fitted a horizontal strip with clamp on either side. These clamps hold glass vessels open at both ends and with stainless steel wire gauge with rubber rings at lower and, which dips in water. Two independently thermostatically controlled hot plate rating 65 watt are fixed on the top of the cabinet upon which 1000 ml beakers are filled with water. Temperature maintained at 37°C +/_1°C. Independent switches with neon indicators for motor, hot plates are fitted on a panel. Mains fuse, with two meter mains cord and plug provided. Work on 220 volts A.C. mains.
DISINTEGRATOR MOTOR DRIVEN
Laboratory size, harmer type, with ¼ H.P. heavy duty motor (single phase) 220 volts, A.C. Consist of four steel hammers fixed to a disc of 75 mm. in diameter with 25 mm. thickness, through which passes a shaft being revolved at 3000 R.P.M. The hammers are enclosed in a casted Drum, the sides & upper surface of which are roughened. The inner screen (sieves) of different mesh size 9 a set of three sieves of courses, medium and fine supplied. Hopper made of heavy aluminum sheet built on angle iron frame.
DISSOLUTION RATE TEST EQUIPMENT
Tablets or capsules taken orally remain one of the most effective means of treatment available even today. Tablet Dissolution is a standardized method for measuring the rate of drug release from a dosage form.
Consists of A water bath with 500 W heater covered 1000 ml. glass vessel and a digital temperature controller. Variable speed motor, with 30 cm. long 6 mm. dia. Stainless steel shaft. A cylindrical stainless steel basket and a membrane fixing attachment, water bath of thick acrylic sheet with transparent cover at top. Temperature of the bath is maintained at 37°C with an accuracy of +/-_ 1°C. A cylindrical glass vessel of capacity 1000 ml. with slightly concave bottom has a flanged edge at the top to accept a fitted cover having four holes. One hole is in the center. The shaft of motor fitted on an upright and has an electronic speed regulating device that allows the speed to be varied from 25 to 250 R.P.M. The shaft, with basket fitted at the end rotates smoothly and without any perceptible wobble. Basket consist of two parts, one of which is to be attached to the shaft of solid metal except for 2 mm. vent and is fitted with three springs clips that allows removal of the lower part of the basket to admit the test samples, the detachable part of basket is of stainless steel mesh formed into cylindrical 3.6 x 2.5 cm dia. Works 220 volts 50 Hz A. C.
(b) same as above but analog type single stage.
DOUBLE UNIT ORGAN BATH
A perspex organ bath with fine thermostatic temperature control; electric stirrer; and complete set of accessories, making it a versatile unit for all research work. Bath 12”x 9”x 8” with leak proof devetailed joints, resting in study metal frame; top of the bath carries a 1” x 3/8” thick band, for fixing accessories, Inside the bath is a metal sheathed heating element which is Replaceable, controlled by means of a fine adjustable thermostat Constant, sensitivity +_ 1°C.The stirrer unit is completely independent and dips in the bath in one corner, fixing on its special stainless steel upright. The bath frame fitted with a perspex junction box, and carries all the electrical leads and connections, Two pilot lamps indicate working. Standard components are:-
(i) Double set of glass inner vessels.
(ii) Oxygen tubes
(iii) Warming coils
(iv) Two stainless steel capillary levers.
(v) Four stainless steel upright with Boss heads,
Flocculators are used for the determination of the necessary agents required for sedimentation. Used to optimize the coagulant additives and poly-electrolytes for surface and residual water treatment, as well as evaluate the efficiency of an absorbent in toxic agents. The Laboratory flocculators are avialable in either 4 or 6 positions, and have powerful torque to allow stirring and mixing high viscosity substances. Suitable for beakers up to 1000 ml. tall form or 2000 ml. In low Form.
Stirrer equipment for 4 or 6 places that accommodates
beakers up to 1000 ml. Tall or 2000 ml. Low from.
- Stirring speeds from 15 to 200 RPM
- Noise Free operation
- Adjustable timer up to 999 minutes or continuous operation.
- Easy to adjust height over head stir
FRIABILITY TEST APPARATUS DOUBLE
• With digital Seven segment LED display
• With Two Acrylic Drums
• Sturdy motor to drive drums at constant speed
• Special low RPM motors less noise and constant speed even at very low or high voltage
Instrument used for measuring obression strength of tablets. The unit is equipped with two transparent acrylic drums which rotate at a speed of 25 ± 1 rpm. Each of the two acrylic drums are provided with an arm which carries the tablets along with it up to a predetermined height and allows them to fall from that specified height, while the drums are rotating, It is fitted with a digital revolution counter showing the current number of revolutions for the test. A thumb wheel switch is used to set the desired number of rotations. Provision is made to remove the lid of the acrylic drum by unscrewing just one knob
Display : 3 digit bright red seven segment LED display
Accuracy : ± 1 revolution
Resolution : 1 revolution
Range : 0-999 revolutions
No. of drums : 2
Operating Temp. Range : 10 Digree – 50Digree C
Power : 230 V o +/_ 10%, 50 Hz. AC
Dimension : 550 mm (L) x 260 mm (W) 250 mm (HT.) Approx.)
Mass : 10 Kg.
Accessories : Dust Cover-1 No.and Instruction manual
FRIABILITY TEST APPARATUS SINGLE
Used to determine the durability and abrasiveness of tablets. A transparent perspex drum of perspex sheet 6.4 mm. thick, 300 mm. dia x 35 mm. deep and white cover disc and nut, also a shaped radial fixed blade which carries the tablets along with it up to the central height and lets them of while the drum is rotating. Thus the tablets rub against each other without any hard impact. the drum rotates at a fixed speed of 30 R. P. M. by a geared motor and the rotation period is controlled by a timer having duration of 1 to 15 minutes per determined end preset. The motor unit is housed in a shaped mild steel cabinet with shaft extended on one side upon which the drum rotates. Switches with neon indicators and time switch are fitted on a panel land provided, work on 220 volts 50 Hz A.C.
HAND GRINDING MILL
Table fixing with hardened grinding discs, provisions for coarse and fine grinding ,big size.
A compact Histamine Aerosol apparatus consisting of a clear perspex exposition chamber divided in two sections and all glass nebuilizer and dial type sphygmomanometer for assay of anti-histamine drugs on guinea-pigs etc.
For recording graphically the movement of heart, muscles and a number of other basic physiology experiments.
Easy to use,with Good performace and long trouble free life.
Casted aluminium body, fitted with levelling screws; with eight speed gear train to provide direct all the eight speeds mms – 1 640, 312, 25, 12.5, 2.5, 1.25, 0.25 & 0.12. Smooth and durable performance with the maintenance of speed even after years of use. Change over of speeds from one ratio to the other effected through an adjustable clutch on the side plate showing the speed. Drum provided with neutralizing clutch, electrical contact block and contact arms. Stainless steel axle of dia. 19 mm with screw lift and moves in ball bearing to give smooth performance. Drum fitted with 150 mm. casted aluminoum cylinder with clamping nut having 19 mm. hole for fastening to axle. With good quality electric motor for long trouble free functioning. Overall Dimensions- 540 x 255 x 230 mm. approx. Ht. x width x depth.
Mass -10 kg. Power required – 220 -240 V, 50 Hz AC. Mains. Accessories with kymograph:
• Kymograph Paper 6”x20’’
• Induction Coil
• Weight & Hooks set 11gm
• Adjusting Stand
• Tuning Fork Stainless steel N 100
• Tambour Brass
• Smoking Burner Gas
• Femure Clamp
• Tuning Fork Starter
• Heart Liver
• Double Clamp (X) Block
• Mussle Chamber
• Electric Timer Maker
• Simple Key
• Frog Board with Clamp
• Heart Chamber
• Styles with Pointer AL
• Electrode with Cu Wire
• Mussle Lever
Kymograph consisting of a revolving drum, bearing a kymograph paper on which a stylus moves up and down displaying the effects of the drugs on contractile tissues, is commonly used in experimental physiology and pharmacology laboratories in teaching institutions. Muscle or tissue movements are recorded on paper fixed on moving drum using recording lever. PVG’s Kymograph with digital display i.e recording drum is microprocessor controlled unit and is advanced version in comparison to old type of electrically driven pulley adjustment drum.
- Maintenance free: Microprocessor controlled unit
- 16 × 2 LCD Display
- Digital speed selection
- Highly accurate speeds-0.12,0.25,0.50,0.75,1.00,1.25,2.50 mm/sec
- Digital Timer & Time multiplier with Audio & Visual Alarm Very low power consumption
- Easy height adjustment of drum
- Auto concentration response curve (CRC) mode & Normal mode Sturdy, corrosion resistant body
- Battery backup (optional)
LEAKAGE TEST APPARATUS
Stainless steel body with side grips for easy carriage with vacuum desiccator and pressure gauze. Front panel with on off switch and timer. Supplied complete with 1.5 m cord and plug to work on 220 – 240 V 50 Hz A.C. mains.
MELTING POINT APPARATUS
Digital Melting Point Apparatus , constructed using quality components for long and Trouble free life.
Used for determining accurate melting points of solids In Pharmaceutical and Drug Industries.
With a special arrangement has been made for holding the capillary, which contains the sample, in a uniformly heating media
Temperature Range: 20c Above Room Temperature to 2750 c
Readability: 10 c
Display : 3 Digit LED Display
Heating Rate Control : Electronic
Stirrer speed Control : Electronic
Temperature Probe : PT-100
Oil Capacity : 200 ml.
Power Supply : 230 v +-10%, 50 HZ Ac
Standard Accessories :
Silicon Oil, Magnetic Rotor, A Box of Capillaries, Magnifying Glass, Cylindrical Container, Oil Heater and Temperature Probe.
Works on 220 V 50 Hz A.C Mains to destroy syringes or needles.
OINTMENT FILLING MACHINE
Stroke type machine. With heavy stable base. Filling capacity adjustable from 5 gm. to 50 gm. Detachable nozzles provided for each capacity. Hooper and contact parts are of stainless steel.
Corrugated rubber tube with side clips, open link chain. Suitable for use with any tambour.
POLE CLIMBING APPARATUS
Outer chamber made of thick plywood sheet with an observation window and inner animal chamber is of clear acrylic sheet, bottom of which is provided with chrome plated brass bars. A shock for controlled duration of 200V AC 50Hz single phase -0.2mA is built-in and is controlled by built-in 11 position solid state timer up to 30 seconds. Output for connection to kymograph or recorder has been brought out as terminal. An animal dropping removal tray has been provided for keeping the equipment clean.
Detachable polishing pan for use with Tablet Coating Pan , painted mild steel provided with inner lining of superior canvas cloth, inner size diameter 300 mm. × 200 mm. high with opening of 175 mm. diameter neck used for polishing tablets.
With heavy gauge mesh (4 mesh 20 s.w.g.) mounted in a sturdy frame of mild steel angle, size 18″x 14′ x 14″ with door in front. wire walk floor of 5/8″ mesh, beneath is a 1″ deep tray (drawer) of Galvanized sheet which slides in an angle attached to the slides of the cage removable for cleaning. Finished in a hammer tone paint. Provided with a card holder.
Single cylinder pump with mechanically operated valve. All metal construction. The driving cone has 3 slots of 6” x 9” x 12” diameter & balanced. A ¼ H.P. geared good quality motor drives the pump. The stroke is adjustable & graduated in cc. up to 500cc. Motor is coupled on a base fitted with castor wheels.
With digital counter, For Determining neuro-pixicity, Muscle tone, balance and motor co-ordination in rats and mice. Consist of two , three or four Compartments of 75 mm. width each with a rotating rod of 25 mm. diameter having speeds of 5,10,15,20 and r.p.m. With time interval counter in each compartments.
(a) Two compartment.
(b) Three compartment.
(c) Four compartment.
Six litre capacity for vital capacity, or use as a gasometer with nylon thread compensated counter balance to the float Float balanced through- cut its movement. Pulley calibrated to denote volume ;inlet and outlet tubes; side cock for gases; cock for draining off water, strong construction. Complete with corrugated tube, mouth piece and recording lever.
- To be used with kymograph to note
- Effect of stimulation voltage (simple muscle twitch)
- Effect of stimulation frequency (tetanus)
- Effect of repeated stimulation (fatigue)
- Effect of drugs on muscles
Effect of pre- and after loading on muscles efficiencyHoused in a metal box, All the controls are located on the front panel with start/stop function, pulse width, frequency selection mode with variable range, 2 x 4 mm. sockets, volt selection rotary switch with maximum output of 25 V with less then 25 ohm impedence, with Analog or Digital displays
STUDENT ORGAN BATH
A Perspex organ bath with fine thermostatic temperature control; complete with accessories, bath size 7” x 4.5” x 5” with leak proof devetaild joints, fitted an strudy metal frame.
Made from brass/gun metal machine made perfect shapes smooth and polished cavities. Nickle plated, various capacities with a number of mould in each set. Capacity 1 gm,2 gm or 3 gm.
(i) 4-moulds set
(ii) 6-moulds set
(iii) 12-moulds set
Note : Other sizes and capacities can be made on demand.
TABLE HARDNESS TESTER PFIZER TYPE
Simple easy to operate, Chemical Resistant, rugged construction with unmatched quality
Measure Quickly accurately and conveniently
Capacity 0 to 20 Kg, Dial type, Packed in polished wooden Box.
TABLET COATING PAN
Stainless steel of diameter 300 mm. The machine worked by oil immersed gearbox with 1/4 H.P Motor driven, Air blower is operating independently and air is thermostatically controlled to give temperature of 30° to 110° C. Switches for motor blower heat and thermostat are fixed on a panel with neon indicator. Provided with mains lead with 15 Amp. plug .
TABLET COUNTING DEVICE
A Quick and Convenient Device, For 100 tablets with 9.5 mm perforations, made of Aluminium, provided with a pouring lip and handle.
TABLET DISINTEGRATION TEST APPARATUS SINGLE BASKET
With single disc. With six removable glass vessels of size 7.5 x 20 mm diameter, have a stainless steel wire mesh bottom, which dips in water in a beaker of 1000 ml. capacity kept on the hot plate, temperature of which is maintained at 37°C with an accuracy of +_1° C.
TABLET DISINTEGRATION TEST APPARATUS SIX BASKET
With six disc. With six removable glass vessels of size 7.5 x 20 mm. diameter, have a stainless steel wire mesh bottom, which dips in water in a beaker of 1000 ml. capacity kept on the hot plate, temperature of which is maintained at 37°C with an accuracy of +_1° C.
TABLET HARDNESS TESTER MONSANTO
Handy instrument for taking quick readings for the hardness of tablets. Made of brass turned parts. Heavily chrome plated, the scale is 0 to 20 Kg. The index mark and division is in reading scale which is adjustable for zero as per size of the tablets.
TABLET MACHINE HAND OPERATED
PVG’s Tablet Making Machine (Hand Operated) is used for making tablets up to 1000 mg and Size of punch & die is 8 mm. Automatic compression and ejection device has been provided, actuated by revolution of the wheel drive. Feed and removal of tablets has also been made automatic. Accentric pressure system has been applied for easy setting of thickness and hardness of tablets. Astainless steel hopper has been given. These Tablet Making Machine (Hand Operated) has been mounted on a mild steel fabrication.
Supplied complete with one die and punch set of stainless steel. easy setting for thickness & hardness of tablets with nuts and lock nuts.
TABLET MAKING MACHINE ELECTRICAL
Used in Institutes, Medical Colleges, Industries, Pharmacy colleges, Pharmaceutical Industry, Laboratories and Hospitals Electrical, Motor Driven, Good Quality, Easy to use With Long Trouble Free Life.
- Automatic compression and ejection device
- Revolution of the wheel drive by motor driven belt.
- Automatic feed
- Removal of tablets
- Built on a heavy casted body
- Eccentric pressure system
- Easy setting for thickness and hardness of tablets
- Nuts and lock nuts
- Stainless steel Hopper
- Die and set of punches of stainless steel steel
Spare die & punches:
- Extra die & punches of stainless steel of sizes 6,9 and 12 mm are provided at an extra cost (any one size)
- Heavy Stable, Stand of angle Steel
- Motor One Horse Power works on 220 V 50 Hz A.C mains
- Full Acrylic cover of machine, for safety of Students at extra price.
Extra heavy duty for making tinctures, decotious infusions etc. capacity one litre, stainless steel disc, with screw drive, stainless steel mesh as inner perforated vessel with stop cock.
TUBE CRIMPING AND SEALING MACHINE
Robust construction. Hand lever sliding movement with touched jaws, spring action release of jaws.
Suitable for reading thin layer chromatography plates and fluorescent analysis in chemistry, biology and mineralogy with filter.
With a viewing hood to view inside of the cabinet, which is light tight. Mild steel powder coated cabinet provided with an access door through which samples can be placed within the cabinet and repositioned as needed for examination.
Comes with one short UV (254 NM) source that has excellent short UV transmission, one long UV (365 NM) and one visible (white light source). For dual wavelengths 254/365 nm. Tube length is 300 mm.
Each wave length is by individual ON/OFF Switch.
